Iron steel roof panel roll forming machine hydraulic cutting ibr making machine
Roof Panel Roll Forming Machine Description
We use the separated mold rolling forming. In this case ,we can ensure the finished sheet is good and not damage the surface.
This machine speed can to 10-25m/min. We also can customize the higher speed machine.
For machine, we design as easy installation. We will put all hydraulic station and electricity wire all together, when the machine arrived at your place,simple connection the main electricity within 5 minutes.
Our machines exported to all over the world, Dubai, America, Chile, Peru, Thailand, Philippines, South Africa, Malaysia Indonesia Colombia, Canada, Rwanda and so on.
Roof Panel Roll Forming Machine Specification
| machine power | 5.5KW+4kw |
| machine of warraty | 12 months |
| Machine selling point | Good quality |
| Material feeding width | 914mm-1450mm or send me your profile |
| Roller material | 45# Steel |
| Shaft material | 45# Steel |
| Cutting bladematerial | Cr12 Frequency |
| cutting blade | hydraulic type |
| Decoiler | 5 ton |
| roller stations | 14 |
| Machine Keywords | metal roof panel machine |
| weight | 4 tons |
| Machine of size | 5m*1.5m*1.6m |
| Coil material | gi,ppgi,gl,ppgl,color steel |
| Thickness of machine frame | 350H steel |
| Raw material thickness | 0.3mm-0.8mm |
Roof Panel Roll Forming Machine Main components
| Decolier | 1 set |
| Forming part | 1 set |
| PLC control system | 1 set |
| Cutting system | 1 set |
| Hydraulic Station | 1 set |
| Out put table | 1 set |
Roof Panel Roll Forming Machine Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
Roof Panel Roll Forming Machine Feature Advantage:
- We have CE and ISO international certificates, the quality of the machine has been certified by the authority, and it meets the import standards of various countries for the machine
- 5 professional designers design molding solutions for you
- We put the machine in the container and will reinforce the machine with 10mm diameter wicks to fix.
Roof Panel Roll Forming Machine Application
The finished sheet elegant and noble.The sheet widly can used for the roof of garden,factory,hotel,exhibition center and villa,etc.It is widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction.
Roof Panel Roll Forming Machine
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: If we become your agent abroad?
A: Yes,of course, if you have a business in the roll forming machine line, we will welcome a lot of cooperation.
Welcome to visit us!
|
|

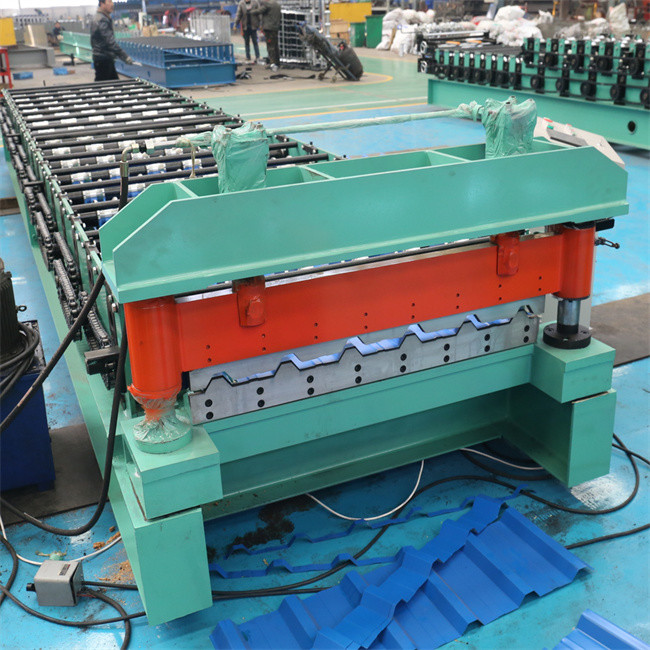

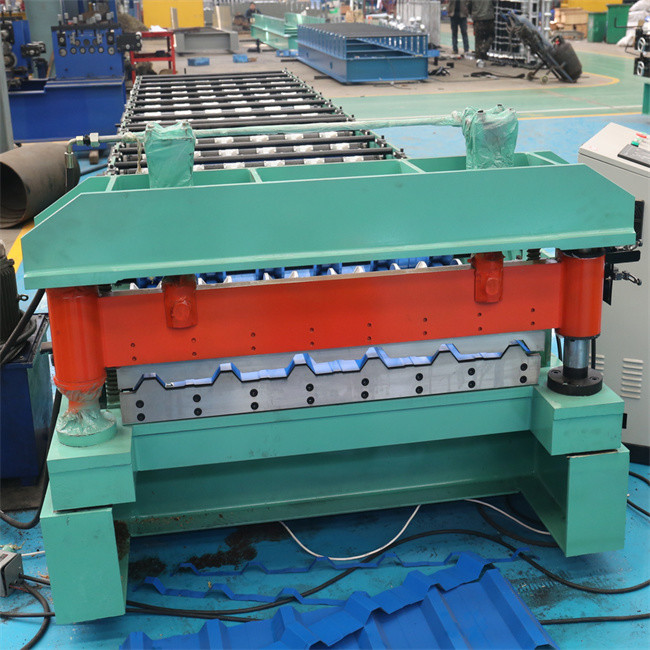

Hydraulic ibr roofing panel roll forming machine 0.3-1mm coler steel automatic for steel construction Images
|
