Automatic Galvanized Metal Tile Glazed Metal Roofing Panel Sheets Roll Forming Machine
1. Description of glazed tile roll forming machine:
This machine is designed by our professionals utilizing high-grade components, in compliance with international standards to meet your demands. Our machine is rigorously tested on various parameters before supplying to our all clients. This machine can be availed in various specifications and can be customized as per the needs of the clients.
Glazed tile roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm.
Material common is PPGI material, material thickness common between 0.3-0.8 mm.
2. Technical details of glazed tilel roll forming machine:
| Machine Specifications |
| Weight | About 5tons |
| Size | About 1.5m*1.5m*1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: your requirement |
| Suitable Raw Material |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 3-5m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw |
| Electric voltage | According to your request |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
- We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
- we have 5 professional designers to design molding solutions
- about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
- Before the machine produced, we use testing instruments ensure the quality of roller hardness, bearing,raw material, tubing, cahins and other machine parts meet the standards.
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

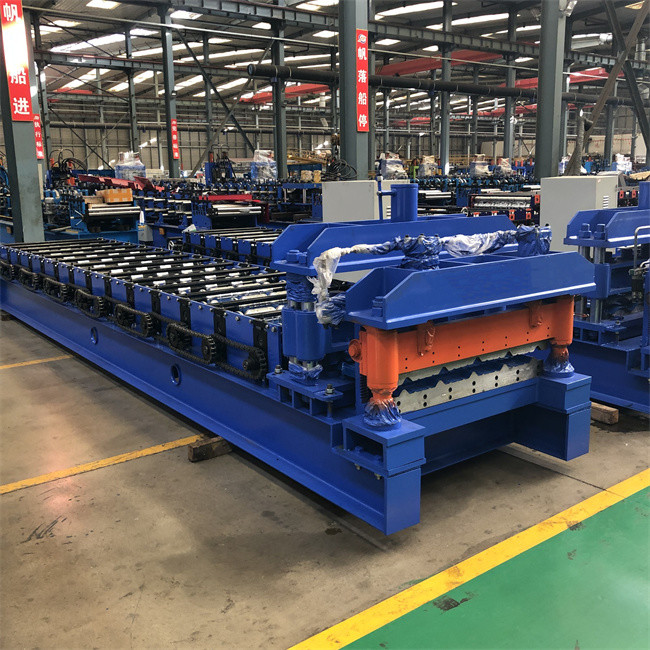

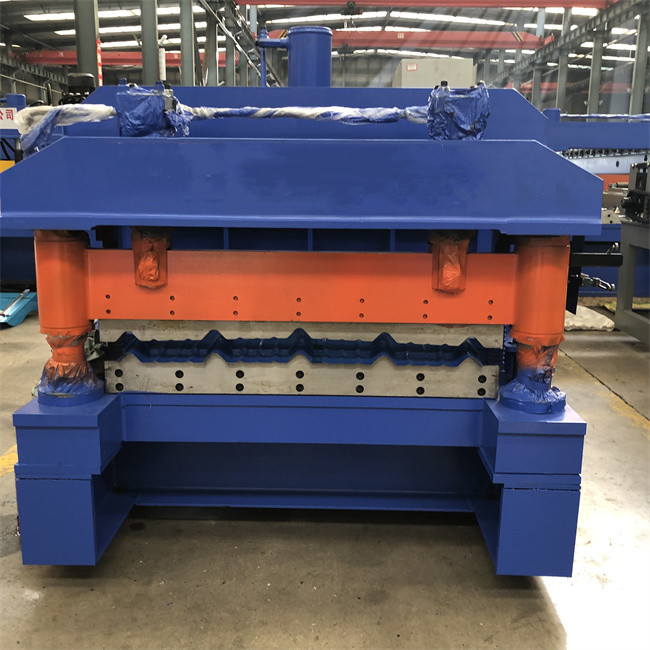

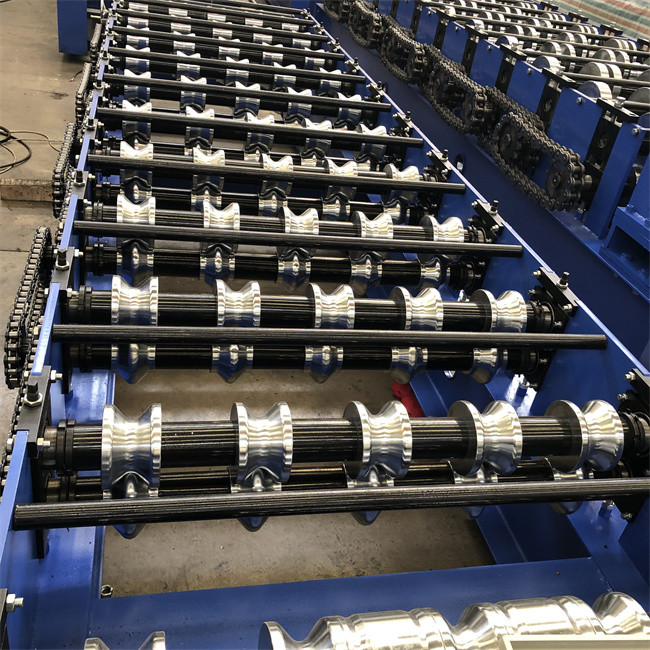

7. Product photo
8. FAQ
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q:How to visit our company:
A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q. Do you have after-sales support?
A: Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee.
Welcome to visit us!
|
|
Automatic Galvanized Metal Tile Glazed Metal Roofing Panel Sheets Roll Forming Machine Images
|
