High Speed Metal Glazed Tile Roll Forming Machine 0.3-0.8mm Automatic For Roof Panel
1. Description of glazed tile roll forming machine:
We can design the glazed tile profile drawing according to you.
New design of lace shearing and molding cutting glazed tile rolling forming machine is designed to make the step tile or glazed tile in batch fully automatically. It can reach the speed of 3 to 5m/min.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
Different roof panel roll forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors.
2. Technical details of glazed tilel roll forming machine:
| Machine Specifications |
| Weight | About 5tons |
| Size | About 1.5m*1.5m*1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: your requirement |
| Suitable Raw Material |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 3-5m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw |
| Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
- We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
- we have 5 professional designers to design molding solutions
- about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
- the machine produce the finished sheet is very beautiful
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

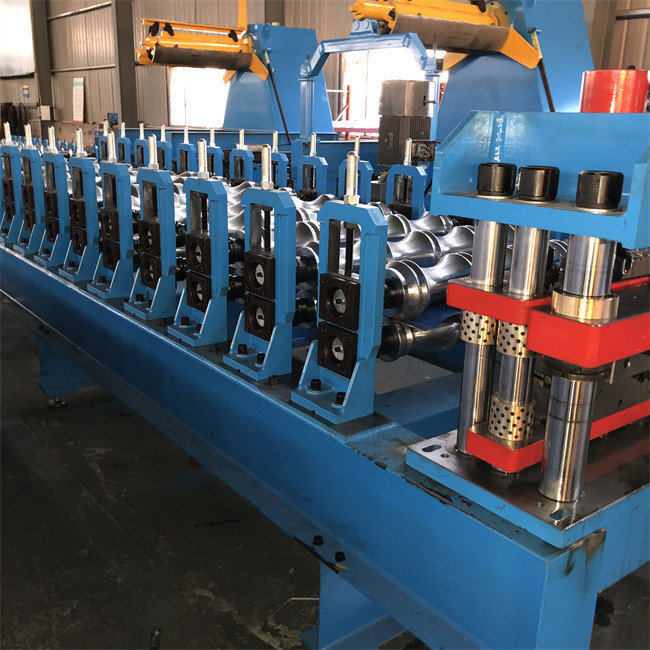

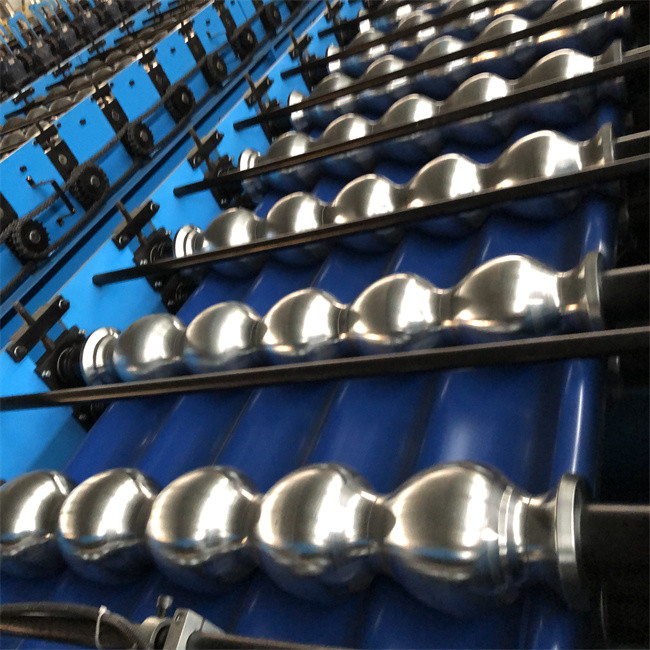

7. Product photo
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Can you provide OEM service for roll forming machine?
A: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Welcome to visit us!
|
|
