Iron 3-5m/min Glazed Tile Roll Forming Machine For Metal Color Steel Roof Wall Panel
1. Description of glazed tile roll forming machine:
1. The machine consists of two parts: shearing and pressing, and the resulting sheet is very beautiful
2. Widely used in garden, hotel, family, road construction
3. Machine used color steel, aluminum plate, iron plate, widely used, easy operation of the machine, PLC setting length, more accurate length, more convenient installation
Our factory is manufacturing high quality glazed tile roll forming machine, and regularly exported to Australia, USA, Thailand, Canada, Colombia, Philippines, Malaysia, India, Angola, etc.
Different roof panel roll forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
2. Technical details of glazed tile machine:
| Machine Specifications |
| Weight | About 4.5tons |
| Size | About 5000*800*1200mm(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow |
| Suitable Raw Material |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 15 stations |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
·1. A professional design team has undergone professional theoretical and production standardization training, which is the guarantee for the accuracy of the design machine
2. The production team has a high level, and we have professional production leaders to do practical training for the workers
3. We have professional equipment to produce the machine, the machine frame uses gantry milling, and the wheels use cnc machine to ensure the accuracy of the important parts of the machine
6. Application
This machine is widely used in the production of the roof and wall and others.

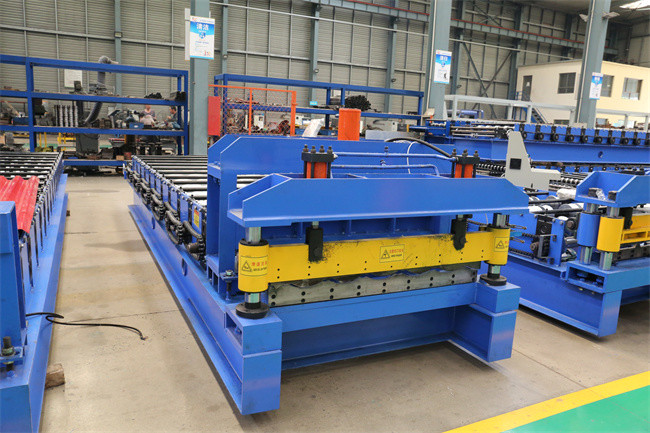

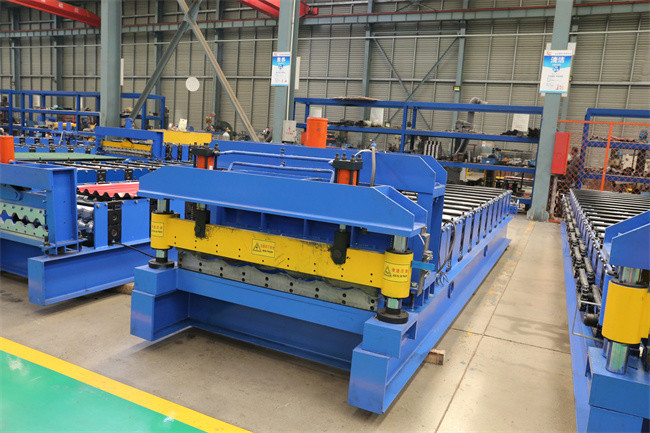

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q. Will i receive a good machine ? Same with my wanted ?
A: Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
Q:What will you do if the machine broken?
A:We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine
Welcome to visit us!
