GI Steel Automatically Metal Floor Decking Roll Forming Machine For Construction Material
1. Description of floor decking roll forming machine:
. The floor deck machine rollers are processed by CNC machine ensure the accuracy of the rollers, and the finished floor deck sheet.
. Our cutting blade frame is good quality and we ensure not deformed during long-term production and makes the final product smooth.
Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
Because the thickness of the working material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a metal corrugated roof roll forming machine, please send me your profile drawing, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
Features for floor deck roll forming machine
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material , no waste.
3.Easy operation, low maintenance cost
4.Hydraulic drive 37kw, the speed can reach 20 meters per minute.
2. Technical details of floor decking roll forming machinery:
| floor decking roll forming Machine Specifications |
| Weight | About 12.5tons |
| Size | About 12.5mx1.5mx1.3m(length x width x height) |
| Color | Machine Main color: blue or can as your requirement |
| Warning color: yellow |
| Suitable Raw Material |
| Material | Galvanized Steel Coils,color steel |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 19stations |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 13.5kw+13.5kw |
| Hydraulic unit motor power: 5.5kw |
| Electric voltage | According to customer’s requirement |
3. Main components of floor decking roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof and floor systems. Metal floor decking roll forming machine popular sell in many countries, such as United States, Mexico, Chile, Peru, Australia, Rwanda, Nigeria, Kenya, Dubai, Qatar, Thailand, India, Indonesia, Malaysia, Colombia Coil width before rolling is 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.8-1.5 mm.

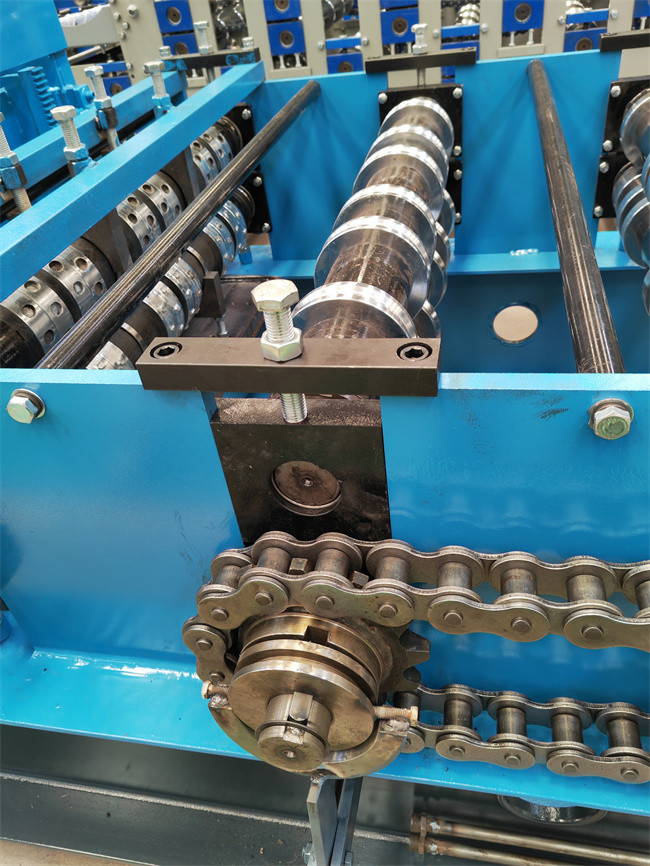

7. Product photo
FAQ
Q. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand components.
Q. What is your payment terms?
A.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept Western Union payments.
4 : Other payment terms you want to pay, please let me know and i will check and reply you.
Welcome to inquiry.
