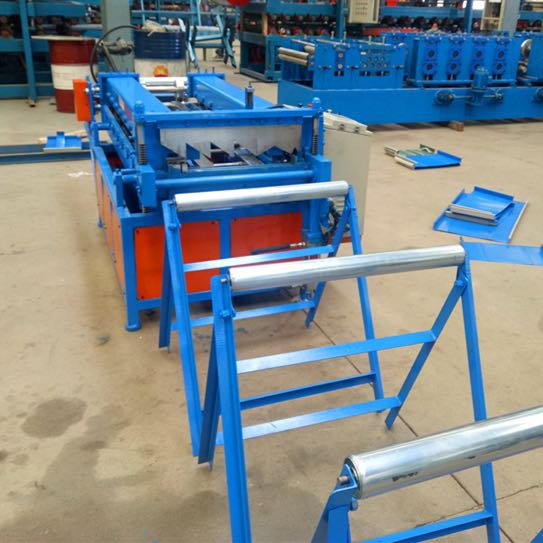

Full Automatic GI And GL Material Joint Hidden Roof Panel Roll Forming Machine
1. Application of standing seam profile roll forming machine
2.Introduction of standing seam roof panel roll forming machine
Snap Lock Standing Seam Roof Panel Roll Forming Machinery manufactures the finest portable standing seam roof panel machine in the industry. With an easy to use and versatile line of panel machines, Snap Lock Standing Seam Roof Panel Roll Forming machines are the go to machine for the serious metal roofing contractor.

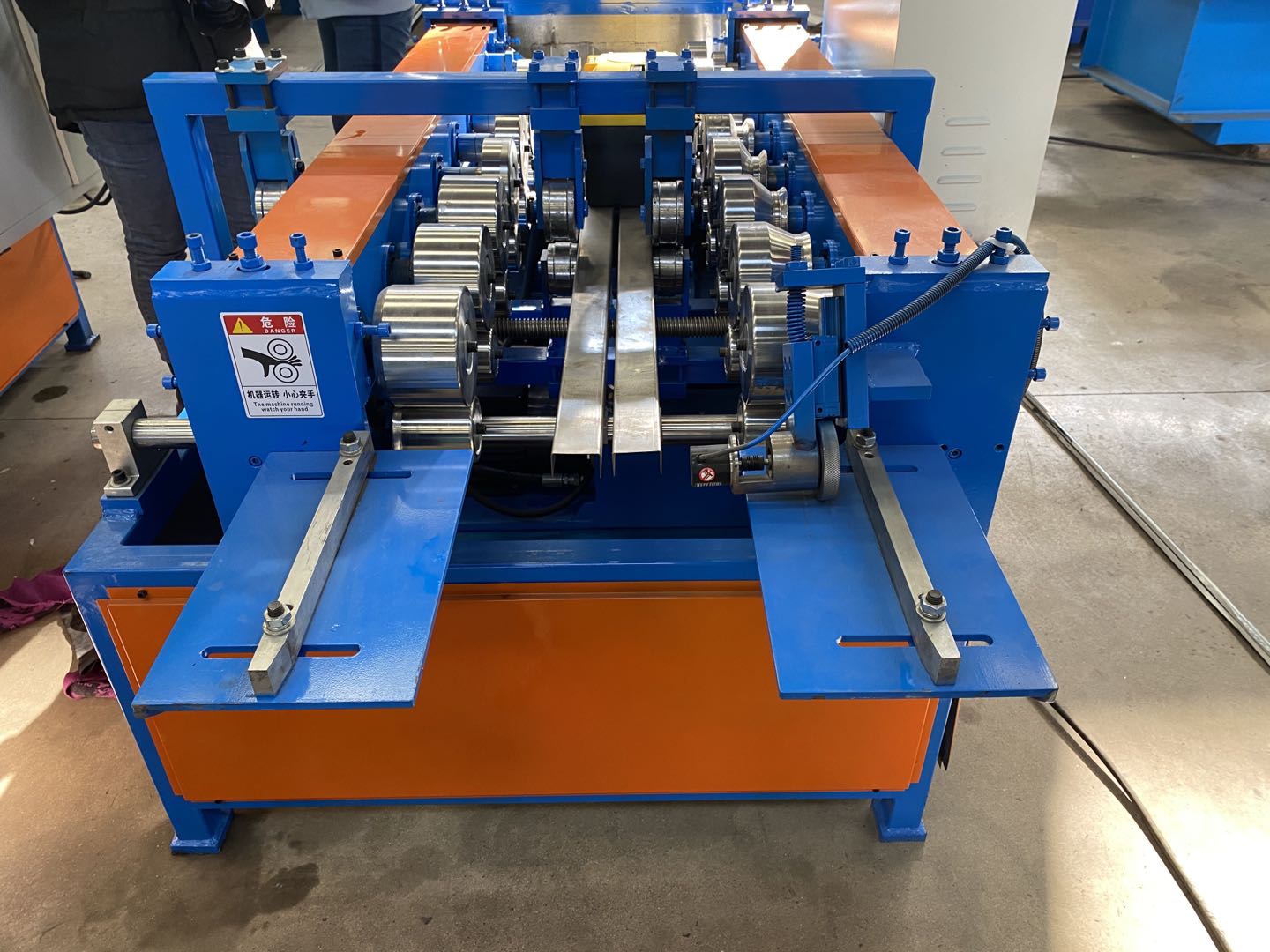

8 forming roller stations mounted ont the stands, 2.2KW motor equipped on the machine, the concealed roof panel roll forming machine works at a speed around 12-15m/min.
The rollers are produced from 45# high grade steel and processed with heat treatment and surface chrome coating treatment etc.
3. Production Flows of Popular in USA Snap Lock Standing Seam Roof Panel Roll Former
Uncoiling the sheet---Infeed guiding--Roll forming----Measure length---Cutting the panel--panels to the supporter
4. Main components of Popular in USA Snap Lock Standing Seam Roof Panel Roll Former
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
5. Technical details of Popular in USA Snap Lock Standing Seam Roof Panel Roll Former:
| Use | ROOF |
| Production Capacity | 8-12 m/min |
| Place of Origin | China |
| Brand Name | ZD |
| Dimension(L*W*H) | 1600*1300*800mm |
| Weight | 1.5tons |
| Key Selling Points | Easy to Operate |
| Feeding width | as customer drawing |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Color | Customized Color |
6. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
7. Our service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
Welcome to contact with us!
