Automatic Control Standing Seam Roofing Machine Hydraulic Cutting

Brand Name : JCX

Model Number : standing seam roll forming machine

Certification : CE and ISO

Place of Origin : China

MOQ : 1 set

Price : according to your profile drawing we will offer you the best price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 SETS roll forming machine

Delivery Time : 20 working days

Packaging Details : this machine will be shipped by LCL shipping, the main machine and PLC and pump are covered with plastic films,the spare parts in carton.

Machine Name : standing seam roll forming machine

Machine weight : 3.25T

Machine size (l*w*h) : 5200*1150*1350mm

Machine speed : 15-20 m/min

Electric Voltage : 380V/50HZ 3Phase or customized

Control system : Automatic PLC Control

Raw material : PPGI,galvanized steel

Decoiler : manual decoiler

Contact Now

Automatic Control Standing Seam Roof Tile Roll Forming Machine Hydraulic Cutting

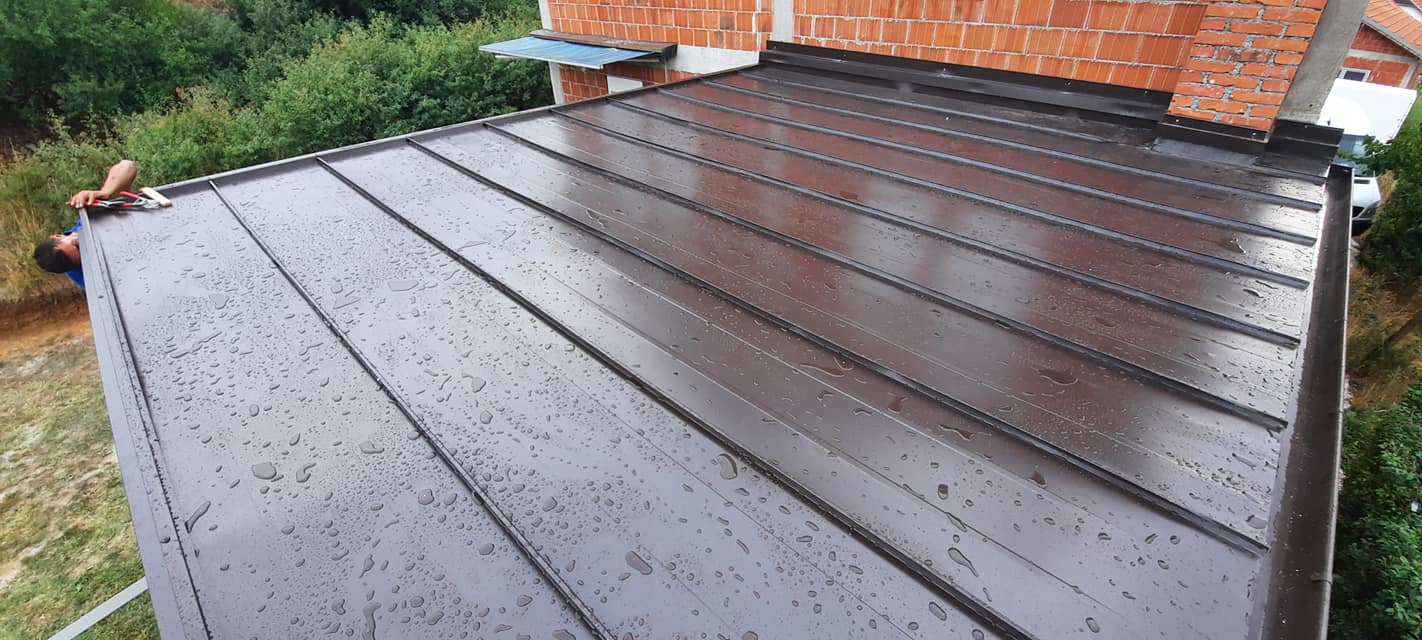

1.Application of Standing Sem Roll Forming Machine:

Automatic Control Standing Seam Roofing Machine Hydraulic Cutting

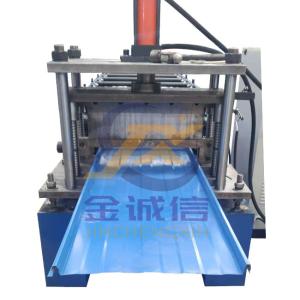

2. Machine picture of Standing Seam Roll Forming Machine:

Automatic Control Standing Seam Roofing Machine Hydraulic Cutting

3. Machine specification of Standing Seam Roll Forming Machine


 	 			Machine Specifications
 			Weight 			About 1.25tons
 			Size 			About 2.2*1.15*1.3m(length x width x height)
 			Color 			Main color: blue or as your requirement
 			Material 			Color Steel Coils
 			Thickness 			0.3-0.7 mm
 			Yield Strength 			235Mpa
 			Quantity of forming rollers stations 			8
 			Diameter of forming rollers shafts 			70mm
 			Roll Forming Speed 			10-15m/min
 			Forming rollers material 			No.45 steel, coated with chromed treatment
 			Cutter material 			Cr12 steel, with quenched treatment
 			Controlling system 			PLC and Converter
 			Electric Power requirement 			Main motor power: 2.2kw hydraulic motor

4. Main componets of Standing Seam Roll Forming Machine:

 	 			No. 			Name 			Unit 			Qty
 			1 			Decoiler 			set 			1
 			2 			Main Machine for roll forming 			set 			1
 			3 			Cutting System 			set 			1
 			4 			Output Table 			set 			1
 			5 			Control System(PLC) 			set 			1
 			6 			hydraulic station 			set


5. Delivery and package


6. Our service

A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services
Life time services to every customer.

7.FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
 If you have another question, pls feel free to contact us as below:

.
