JCX 1200mm Tile Making Machine Roofing Panel Roll Forming Machine

  • 1
  • 2

Brand Name : JCX

Model Number : Double layer Roll Forming Machine

Certification : ISO9001 CE

Place of Origin : China

MOQ : 1 set

Price : USD8000-USD12500 PER SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 SETS PER MONTH

Delivery Time : 20-30 working days

Packaging Details : Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container

Product name : Double Layer Roll Forming Machine

After Warranty Service : Line Support

After-sales Service Provided : Video Technical Support

Warranty : 12 Months,and life long tracking service

Advantage : Automatic Operation

Color : Client's Request

Control box language : Add Customer Request Language

Control system : PLC(detla) System

Export port : Tianjin Port

Need container : 1*40 Feet

Contact Now

JCX 2022 New Product Double Layer Tile Making Machine Metal Roofing Panel Roll Forming Machine

1. Double layer roll forming machine

The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings,such as workshops, warehouses, gymnasiums, exhibition halls, theaters and other room surfaces and walls.

2. Technical details of double layer roll forming machine
Item
Parameter
1
Product name
Wall/Roof panel metal roofing corrugated tile roll forming Machine
2
Raw material
Color steel/Galvanized steel/PPGI/GI/GL/PPGL
3
Feeding width
1200mm
4
Material thickness
0.3mm-0.8mm
5
Forming speed
0-30m/min
6
Effective width
1200mm(up)/1200mm(down)
7
Roll station
18(up)/18(down)
8
Roller diameter
70mm
9
Roller material
45# steel
10
Cutter material
Cr12 , heating treatment HRC58-60℃
11
Voltage
380v or can be customized as customers' requirement
12
Driving mode
single chain 1 inch
13
Hydraulic pressure
10-12MPa
14
Hydraulic motor power
3kw
15
Main motor power
4kw 3phases
16
Control system
PLC Delta Inverter
17
Main frame
300mm H-Beam
18
Weight
5500kgs
19
Dimension
6500mm*1600mm*1700mm

3. Main components of double layer roll forming machine

Double layer roll forming machine
Name
Quantity
Units
5T manual uncoiler (Hydraulic uncoiler)
1
Set
Adjustable feeding platform
1
Set
Roll forming system
1
Set
Plc cut to length
1
Set
Hydraulic system
1
Set
Delta Electronic Control System
1
Set
Supporter/Automatic Stacker
1
Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

JCX 1200mm Tile Making Machine Roofing Panel Roll Forming Machine

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

JCX 1200mm Tile Making Machine Roofing Panel Roll Forming Machine

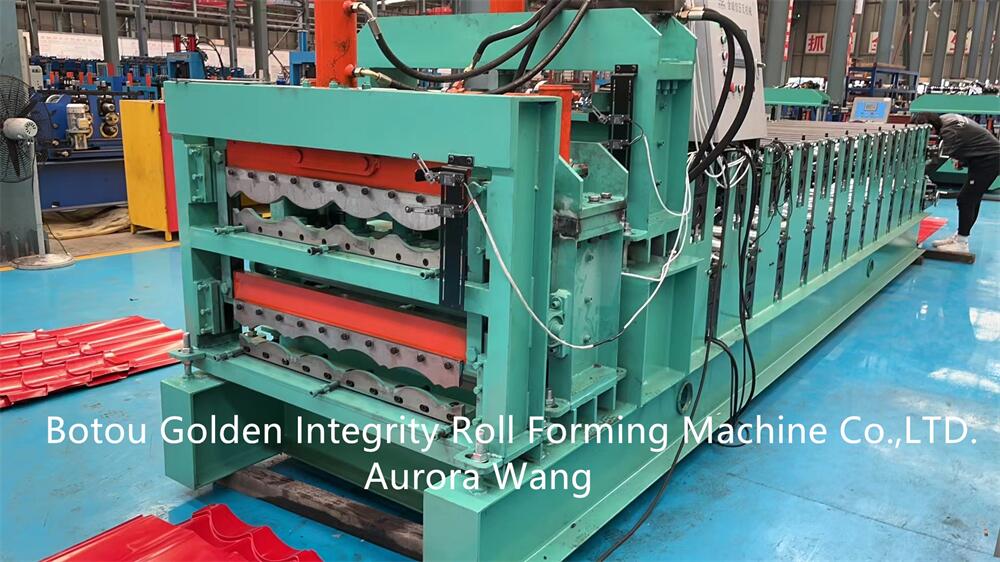

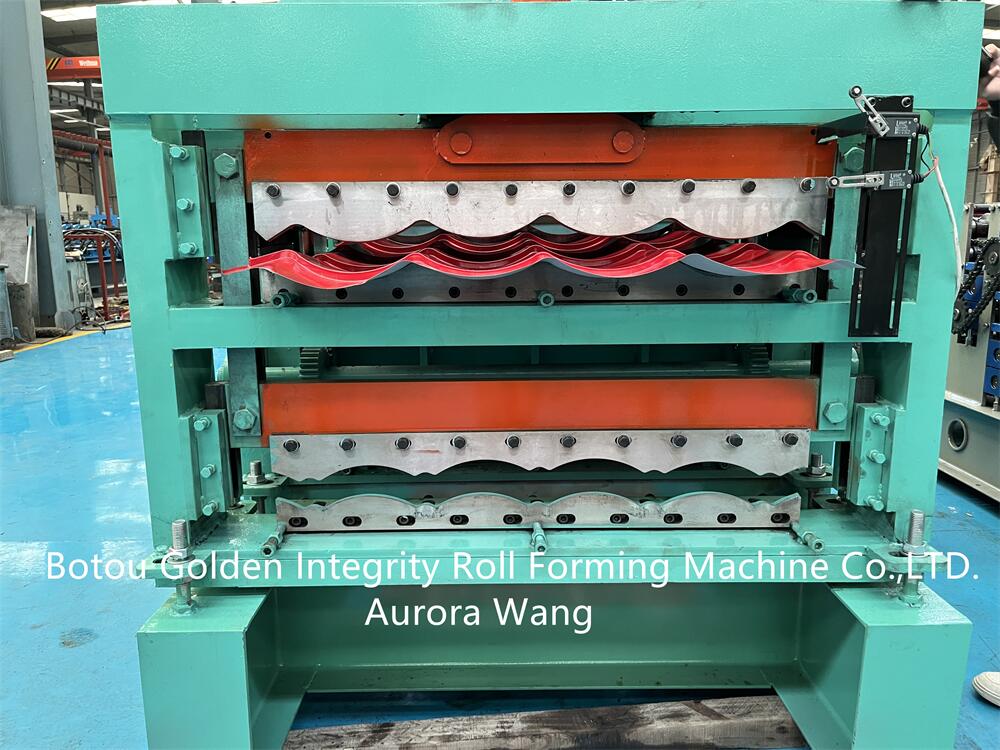

7. Product photo

JCX 1200mm Tile Making Machine Roofing Panel Roll Forming Machine

JCX 1200mm Tile Making Machine Roofing Panel Roll Forming Machine

JCX 1200mm Tile Making Machine Roofing Panel Roll Forming Machine

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
