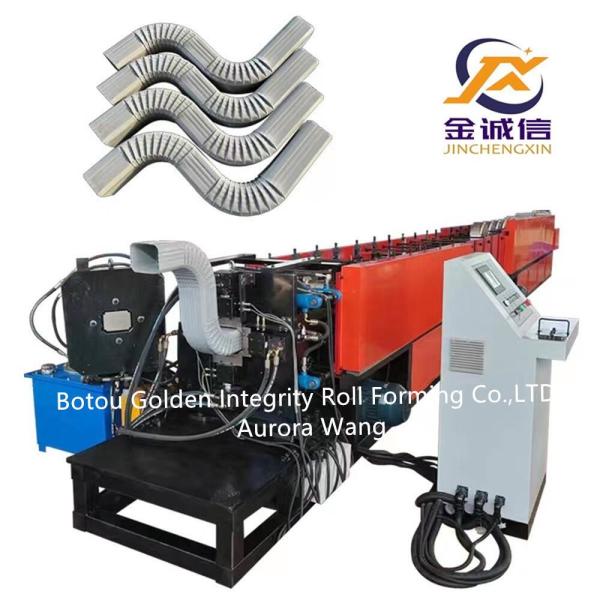

JCX 2022 new product rain water steel downpipe spout roll forming machines downspout elbow machine for sale
1. Downspout roll forming machine
Square downpipe rain pipe rolling forming machine is designed to make the rain pipe in batch fully automatical.downspout pipe making machine could be used to make downspout pipes in a higher speed and good quality by 16 years in this area. For this machine, we take guide column frame style to make machine for making sure machine working speed and steady. And for the transmission, we will use gearbox with chain.
2. Technical details of downspout roll forming machine
| Machine Specifications |
| Weight | About 7000kgs |
| Dimension | About 11m x 1.2m x 1m (length x width x height) |
| Color | Main color: blue |
| Suitable Raw Material | Galvanized Steel Coils |
| Thickness of material | 0.5-0.8mm |
| Coil width | 325mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Roller stations | 20-22 roller stations |
| Diameter of shaft | 60mm |
| Roll Forming Speed | 10-18m/min |
| Roller material | No.45 steel, coated with chromed treatment |
| Shaft material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12 mould steel, with quenched treatment |
| Control system | PLC and Converter Delta brand |
| Electric Power requirement | Motor of roll forming machine: 5.5kw |
| Motor of sawing cutter: 3kw |
| Motor of elbow machine: 1.5kw |
| Electric voltage | According to customer’s requirement |
3. Main components of downspout roll forming machine
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Entry Beach | set | 1 |
| 3 | Main Machine for roll forming | set | 1 |
| 4 | Cutting System | set | 1 |
| 5 | Output Table | set | 1 |
| 6 | Control System(PLC) | set | 1 |
| 7 | hydraulic station | set | 1 |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support

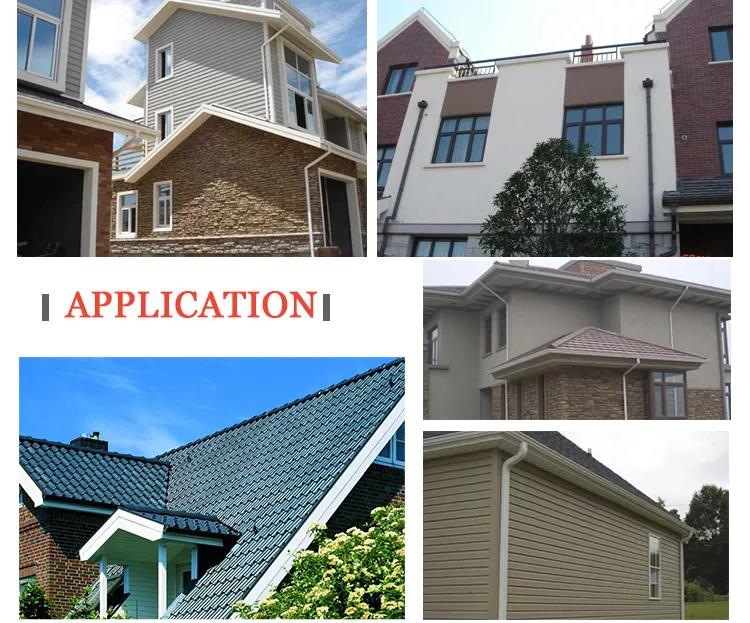

6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

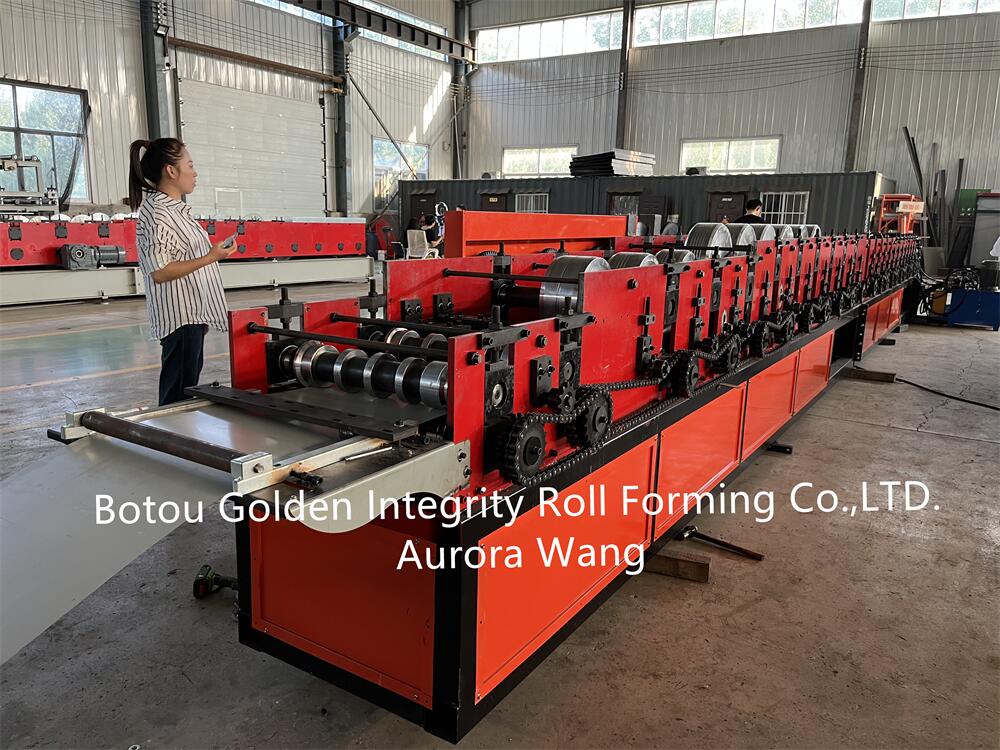

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
