Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine
1. Double layer roll forming machine
This production line can automatic continuous rolling forming ,track scale cut off and etc for the plate, ensure the continuity of production and often can up to max. Steel strip coil are on manual feeding shelf, enter into roll forming machine for forming, and then cut the knife moulds to cut the product for length.
2. Technical details of double layer roll forming machine
| Model | 800/1024 |
| Rod | 18 |
| Production and processing speed | 10 m/min |
| Processing thickness | color steel 0.8mm |
| Axle diameter of roll | Ø70 |
| Frame | 350H steel welding |
| Medium plate | 16mm |

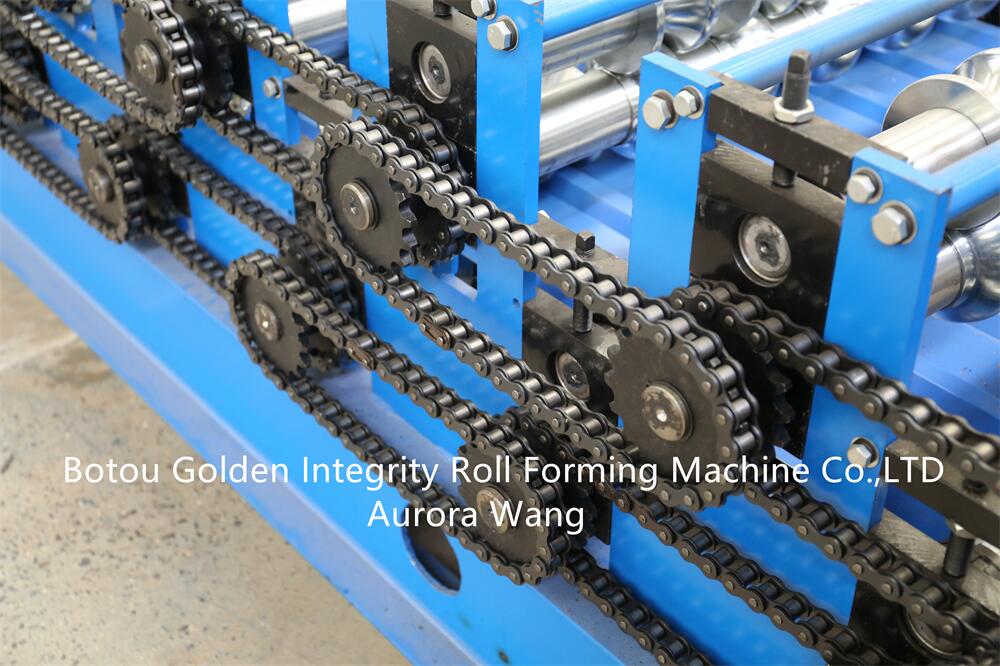

| Transmission mode | 1 inch sprocket chain drive |
| Shaft material | 45# quenching and finishing machining |
| Wheel material | 45# finishing car processing, high frequency quenching, hard chrome plating |
| Main engine power | 4KW pure copper motor |
| Oil pump motor | 4KW |
| Control system | touch screen setting |
| Shear | hydraulic mold shear |
| Cutter plate | Cr12 blade |
3. Main components of double layer roll forming machine
| No. | Component | Quantity |
| 1 | Decoiler | 1 set |
| 2 | Guiding | 1 set |
| 3 | Roll forming | 1 set |
| 4 | Hydraulic cutting | 1 set |
| 5 | Out table | 2 sets |
| 6 | Hydraulic station | 1 set |
| 7 | PLC controller | 1 set |
| 8 | Spare part&tools | 1 box |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

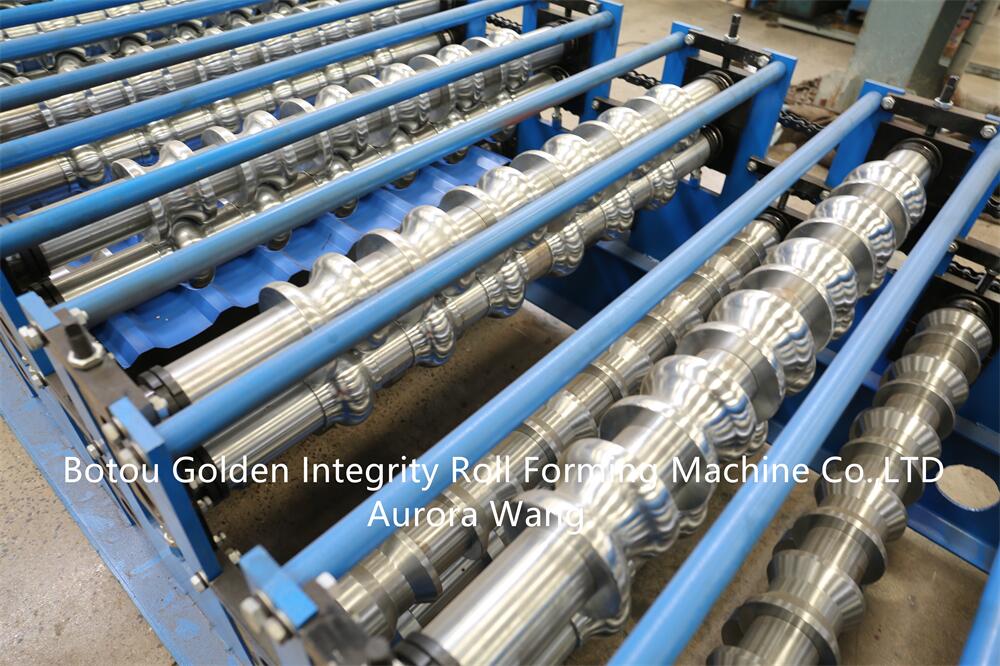

7. Product photo
