Green Automatic Metal Roof Wall Panel Double Layer Roll Forming Machine PPGI Material
1. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel.
our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

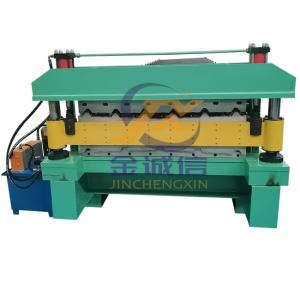

2. Product photos Our Double Layer Roll Forming Machine
3.Description Of Double Layer Roll Forming Machine
This double layer roll forming machine have two type profiles : Ibr roofing sheet + Ibr roofing sheet
The double-layer roof machine can be used for two purposes. Small footprint, convenient transportation and cost saving. The machine can be customized according to user needs. We can customize two type roof for you to choose:
Trapezoidal roof + Trapezoidal roof
Trapezoidal roof + Corrugated roof
Trapezoidal roof + Glazed tile roof
Corrugated roof + Corrugated roof
Corrugated roof + Glazed tile roof
Glazed tile roof + Glazed tile roof
If you have requirements for production speed, power, voltage and brand, please explain in advance.
4. Technical Details Of Double Layer Roll Forming Machine
| Machine Specifications |
| Weight | About 6tons |
| Size | About 5.6m x 1.2mx1.2m(length x width x height) |
| Color | Main color: green or as your need |
| Warning color: yellow |
| Suitable Raw Material |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | up 13 + down 15 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw |
| Electric voltage | According to customer’s requirement |
5. Main Components Of Double Layer Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
6. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
7. Advantages Of Our Double Layer Roll Forming Machine
· More than 10 engineers with more than 10 years experience
· More than 10 designers with more than 10 years experience
· Many sets advanced CNC production lines on site
· Passionate Team
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· Our company has more than 10 years of production experience
· Our workshop area of 25,000 square meters
8. Installation service
After the machine arrives at the destination, the seller will send the technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist in the installation work.
Installation period is around 5 days. The buyer should have been prepared for the steel sheet, foundation position the machine before seller’s technician's departure.
The buyer should arrange the accommodation, food, and traffic in the destination
Training period: 2 days. (we can supply training on the operation spot if buyer needs)
Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. Inspection standard is based on the technical standard signed by both parties and our company standard.
