JCX 2022 new product customized double layer roll forming machine for trapezoidal panel and corrugated panel
1. Double layer roll forming machine
Famous brand PLC control ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine details :
1.This ibr trapezoidal and corrugated iron roof sheet making double layer roll forming machine details is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2.The ibr trapezoidal and corrugated iron roof sheet making double layer roll forming machine is stable,no noise,no shake. 3.Our ibr trapezoidal and corrugated iron roof sheet making double layer roll forming machine can uses galvanized steel sheet, colored armor plate or galvalume plate as the material plate.
4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
2. Technical details of double layer roll forming machine
| NO. | Item | Parameter |
| 1 | material | color steel/galvanized steel/aluminium(if G550 please check with us) |
| 2 | feeding width | as customers' request |
| 3 | material thinkness | 0.3-0.8mm or as customers' request |
| 4 | machine size | 6.8*1.5*1.9m |
| 5 | machine weight | 5.2T |
| 6 | voltage requirement | 380V60Hz3P |
| 7 | working speed | 10-15m/min |
| 8 | machine base | 350# steel welded |
| 9 | Frame | Steel plate screwed |
| 10 | forming steps | 11steps |
| 11 | rollers | 45# steel with quenching HRC 40-45℃ |
| 12 | shaft | 45#steel,diameter 80mm |
| 13 | transmission | 1inch chain or gear |
| 14 | PLC | Delta |
| 15 | motor | 4kw |
| 16 | pump | 4kw |
| 17 | cutter | Cr12 HRC 58-62℃ |
| 18 | after-sale service | 24h*7days*1year’s on line and engineer service overseas |
| 19 | warranty | 1year |
3. Main components of double layer roll forming machine
Double layer roll forming machine |
| | | |
| 5T manual uncoiler (Hydraulic uncoiler) | 1 | Set |
| Adjustable feeding platform | 1 | Set |
| Roll forming system | 1 | Set |
| Plc cut to length | 1 | Set |
| Hydraulic system | 1 | Set |
| Delta Electronic Control System | 1 | Set |
| Supporter/Automatic Stacker | 1 | Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

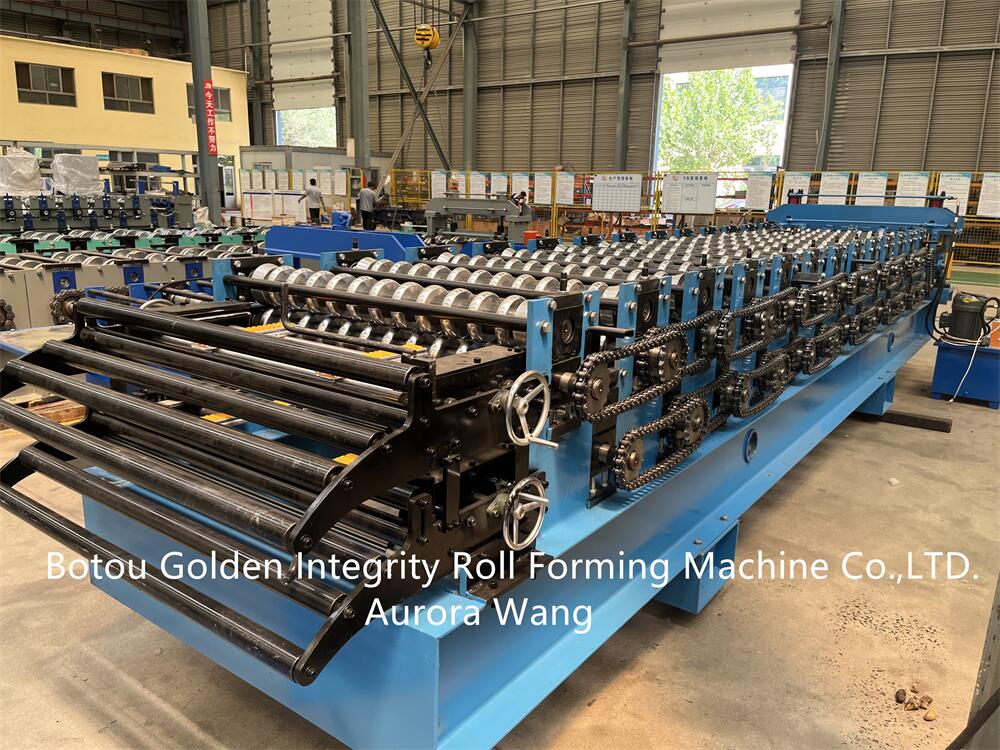

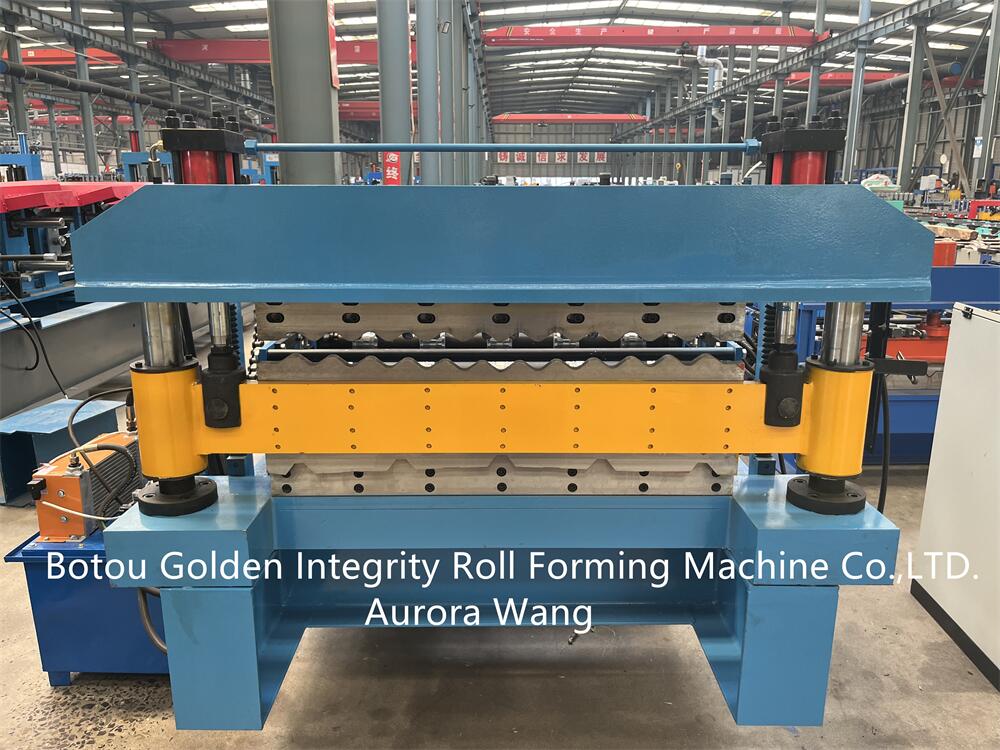

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Product Tags:
|
|

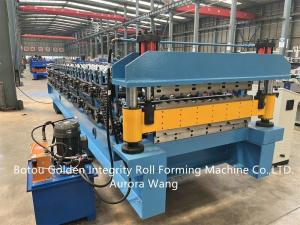

Customized Double Layer Roll Forming Machine Automatic 380V 60Hz 3P Images
|
